TSM-5-28-LS NTEP Livestock Alleyway Scale

- Home
- AWB-5K
AWB40-5K
AWB-5K-SYS
TSM5-28-LS

1
2
Details

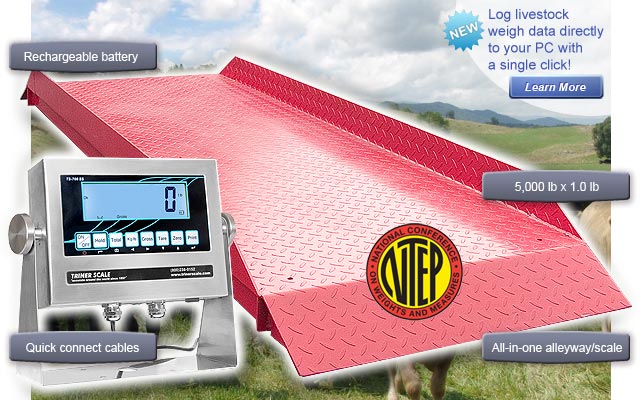

NTEP certified, Legal for Trade livestock alleyway scale. Forklift portable, simple to set up and operate.

The TSM-5-28-LS NTEP livestock scale features super-heavy duty construction throughout. Forklift portable. Operates on internal rechargeable battery or 110 VAC.

Features
Specifications
Brochure

NTEP Approved, Legal For Trade

Complete Livestock Alleyway and Weighing System, Nothing Else Required

All-in-One Weighing Platform/Alleyway Combined Into One Unit

Fully Coated Epoxy Paint Finish

Heavy Duty Steel Construction, Built to Withstand Outdoor Operation

All Components are Watertight

Height Adjustable Precision Leveling Feet with Top Access Adjustment

Digital Indicator Features Stainless Steel NEMA 4X Enclosure

Operates on Built In Rechargeable Battery or 110 VAC

Average Weight Hold Feature Compensates for Animal Movement

NEW! Instantly create animal weigh data records directly on your laptop PC with DataLog™ software!

Overall Dimensions of Alleyway: 96" (L) x 30" (W) x 8" (H)

Height of Side Panels Above Deck: 4" (H)

Height of Deck above Ground: 4" (H)

Shipping Weight: 310 lb

Capacity: 5,000 lb x 1 lb

Four Premium Alloy Steel Nickel Plated Load Cells, Hermetically Sealed

Load Cell Capacity is 2 times the Scale Capacity

Built in Overload Protection

15' Interface Cable


PDF:	TSM5-28-LS Scale Brochure


	This scale is available for purchase through our webstore at FloorScalesDirect.com
