TS20KD-1010 Air Cargo Container Scale

Home

TS20KD-1010

TSPFS-300

TSPFS

TS-15 BD

1
2
Details

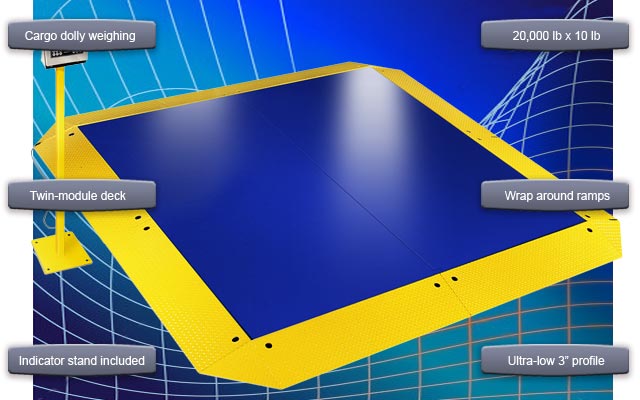

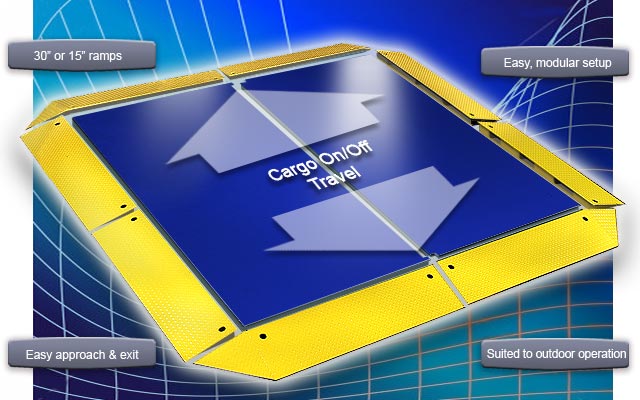

10' x 10', 20,000 lb capacity air cargo ULD container scale with full wrap-around ramps.

The low profile, surface-mounted TS20KD-1010 Air Cargo Container Scale eliminates the need for scale pit, and can be relocated.

Features
Platform
Indicator
Brochure
Purchasing Info

Super Low Profile, Only 3" Tall

Engineered For Weighing Air Cargo Containers

1/2" Steel Deck Plate

Wrap Around Ramps

Two Piece Deck Design

Durable Two-Part Epoxy Paint Finish

Stainless Steel Junction Box

15' Interface Cable

Indicator Mounting Stand

Platform Size: 10' (L) x 10' (W) x 3" (H)

Eight (8) Wrap Around Ramps: 15' (L) x 60" (W) x 3" (H)

Capacity: 20,000 lb x 10 lb

Six Premium Alloy Steel Nickel Plated Load Cells

Hermetically Sealed Load Cells

Load Cell Capacity is 2 times the Scale Capacity

Built in Overload Protection

NEMA 4x Stainless Steel Watertight Junction Box

Indicator Model 7600E

NEMA 4x Watertight Stainless Steel Enclosure

Bright Easy-To-Read LED Display

Easy Operation with Full Numeric Keypad

LB / KG Conversion

Key-in Tare Function

Two Built In RS-232 Communications Ports

Tilt Adjustable Wall or Desk Mount Stand

Weigh In / Weigh Out Mode

120-240 VAC Power


PDF:	TS20KD-1010 Cargo Dolly Scale Brochure


	Please contact us for details regarding options, pricing and availability. Call toll free within USA: (800) 238-0152
