Economical precision bench scale for high-accuracy bench weighing applications.
2

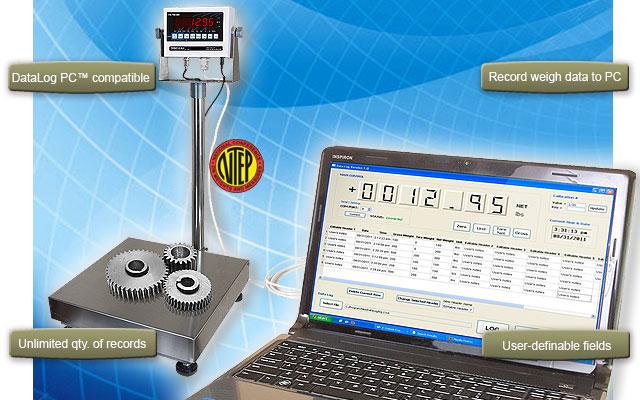

Log weigh data and related statistics directly to PC with Triner's optional DataLog PC™ software.
2

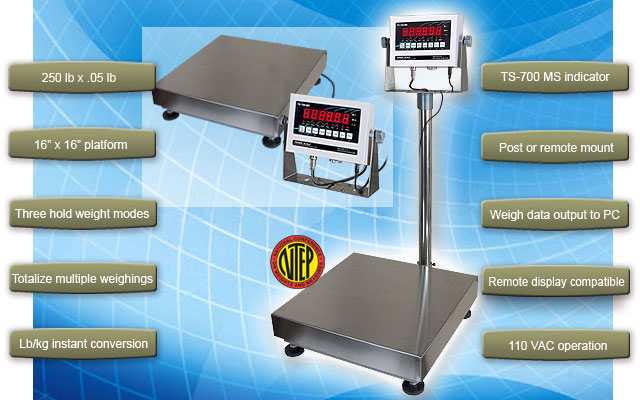

Triner's multi-function TS-700 MS digital indicator is mated to the 16" x 16" bench scale weighing platform.
  • Features
  • Functions
  • Specifications

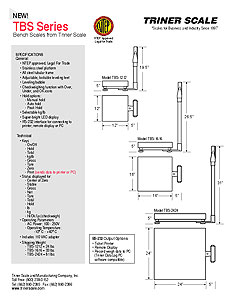

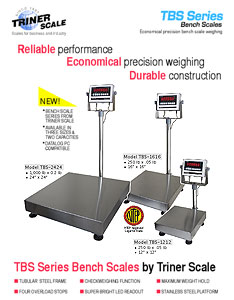

  • Brochure
  • Purchasing Info
NTEP Approved, Class III Legal for Trade
Stainless Steel Weighing Platform
Bright Easy-To-Read Six Digit Backlit LED Display
Easy, 8-Button Operation
Tare/Gross/Net Function
RS-232 Port with DB9 Connector: Printer or Remote Display or PC
Tilt-Adjustable Stand for Wall or Stand Mounting
Instant lb to kg Conversion
Checkweighing
Weight Accumulation/Totalizing
Ticket Printer Compatible
Remote Display Compatible
PC Compatible
110 VAC Power

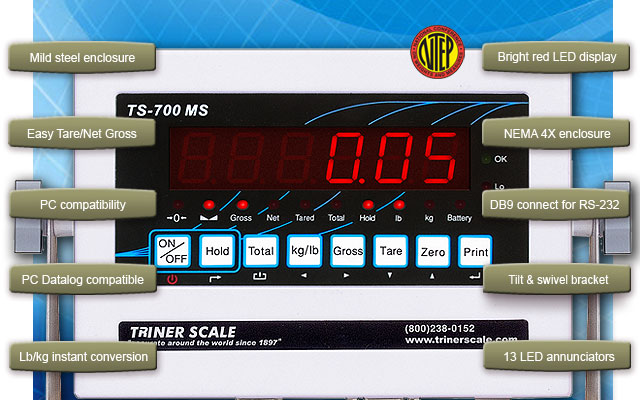

On/Off: Power on/power off.
Hold: Three modes: Auto hold, Manual hold, Hold maximum
Total: Accumulates total of multiple weighings.
Kg/lb: Instantly converts displayed weight from lb to kg.
Gross: Displays gross weight after tare weight is displayed.
Tare: Displays Tare weight.
Zero: Returns displayed weight to zero.
Print: Prints weigh data to ticket printer, or displays weigh data in remote display,
or sends weigh data to PC.


Capacity: 250 lb x 0.05 lb
Platform: 16" x 16", stainless steel
Column Height: 26.5"
Display resolution: 30,000
Analog to digital conversion: 2,000,000
Input voltage: -3 ~30mvDC
Excitation circuit: 5VDC
Load cell maximum: 8, 350 ohm
Operating temperature: -40°F -- 160°F
Power: 110VAC 9VDC adapter
NEMA 4X mild steel enclosure.
