TS60-730AW Axle Scale, 60,000 lb

- Home
- TS60-730AW
- TS60-836-AW
- TS60-836-AW
- TS-DTW-160

1
2
Details

The Triner TS60-730AW axle scale is the most economical solution for on-site weighing of trucks and vehicles.

The TS60-730AW axle scale is constructed to withstand harsh environments and
high-volume use.

Features
Specifications
Brochure
Purchasing Info

Quick, easy setup

High Accuracy

Designed and Engineered for Vehicle Axle Weighing

Accumulation Mode Totalizes Weights of All Axles

All Components are Watertight for Outdoor Environments

Forklift Portable Design

Heavy Duty Steel I-Beam Construction

Treaded Top Plate

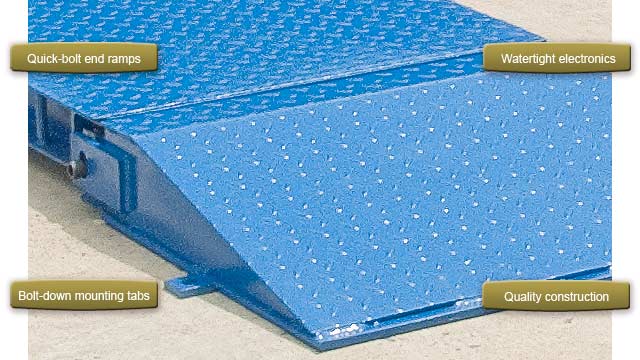

On/Off Ramps Include Bolting Tabs For Fixed Installations

NEMA 4X Stainless Steel Junction Boxes

Durable Two-Part Epoxy Paint Finish

Indicator Mounting Stand Included

Factory Calibrated


Capacity:	60,000 lb x 20 lb
Platform Dimensions:	(Two): 7' L x 30" W x 5.5" H
Ramp Dimensions:	24" L x 30" W x 5.5" H
Footprint:	11' L x 30" W (one platform with ramps)
Loadcells:	Four premium alloy steel nickel plated loadcells per platform IP67 watertight for outdoor environments Capacity is 2.6 times the scale capacity for overload protection
Shipping Weight:	2,150 lb


PDF:	TS60-730-AW Axle Scale Brochure


	This scale is available for purchase through our webstore at FloorScalesDirect.com
