Details

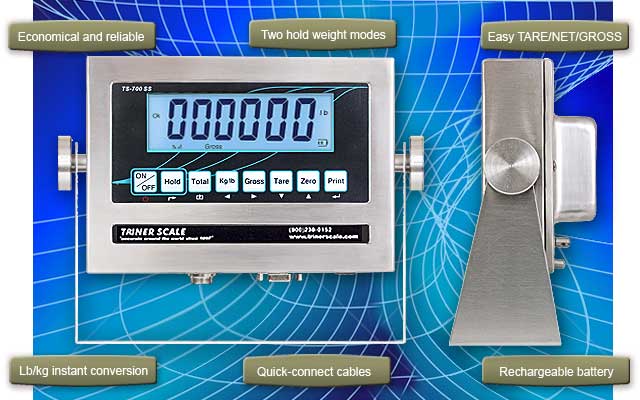

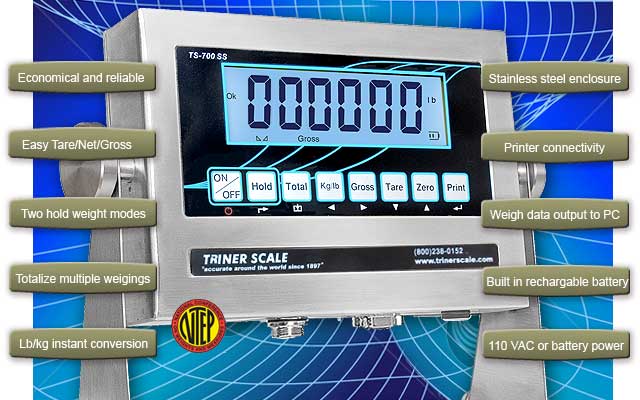

Economical stainless steel enclosure digital indicator with advanced features & functions.

Built in rechargeable battery. NEMA 4X stainless steel enclosure.

Features
Functions
Specifications
Brochure
Operating Guide

NTEP Approved, Class III

NEMA 4x Watertight Stainless Steel Construction

Bright Easy-To-Read Six Digit Backlit LCD Display

Easy, 8-Button Operation

RS-232 Port with DB-9 Connector

Quick-connect for Home Run Cable

Tare/Gross/Net Function

Tilt-Adjustable Stand for Wall or Stand Mounting

Lb to kg Conversion

Checkweighing

Weight Accumulation/Totalizing

Ticket Printer Compatible

Remote Display Compatible

PC Compatible

AC adapter/charger Included. Runs on AC Adapter or Battery.


On/Off:	Power on/power off.
Hold:	Holds/"Freezes" the indicated weight.
Total:	Accumulates total of multiple weighings.
Kg/lb:	Instantly converts displayed weight from lb to kg.
Gross:	Displays gross weight after tare weight is displayed.
Tare:	Displays Tare weight.
Zero:	Returns displayed weight to zero.
Print:	Prints weigh data to ticket printer, or displays weigh data in remote display, or sends weigh data to PC.

Display resolution: 30,000

Analog to digital conversion: 2,000,000

Input voltage: -3 ~30mvDC

Excitation circuit: 5VDC

Load cell maximum: 8, 350 ohm

Operating temperature: -40°F -- 160°F

Power: 110V AC 9V DC adapter or built in rechargeable battery

NEMA 4X stainless steel enclosure.

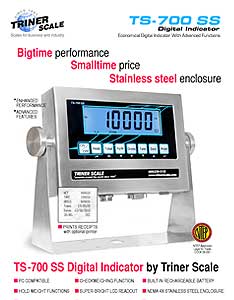

PDF:	TS-700 SS Digital Indicator Brochure


	Operating Guide, TS-700 Series Digital Indicators
