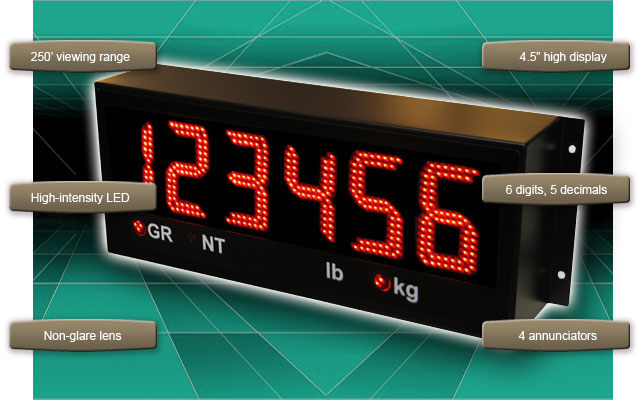

| Display: |
| - High intensity (GA Al In P) LED lamps |
| - 6 digits (7 segments each) |
| - 1 or 2 decimal places |
| - 4 annunciator lights (GR, NT, lb, kg) |
| Communications: |
| - RS-232, RS-422, RS-485 Multi-drop, 20 mA Current Loop (Active & Passive) |
| Data Format: |
| - Auto-Learns Data strings, Baud Rate, Data Bits, Parity, and Stop Bits |
| - Command mode for custom strings |
| Power Requirements: |
| - 100-240 VAC 50/60 Hz |
| - Consumption: 1 A (25 W) |
| Enclosure: |
| - Mild steel with powder coated finish |
| - Breather vent (prevents condensation) |
| - Tough, dependable, and weatherproof |
| Dimensions: 24” x 10” x 5” |
| Weight: 18 lb (9 kg) |
| Operating Temperature: -40°F to 120°F (-40°C to 50°C) |
| |
