TSnn-nnAW (Triple Deck)

- Home
- TS60-730AW
- Model
- Model
- TS-700 SS

1
2
Details

The most economical solution for on-site weighing of trucks and vehicles.

Constructed to withstand harsh environments and high volume use.

Features
Functions
Specifications
Brochure

Quick Easy Setup

High Accuracy

Designed and Engineered for Vehicle Axle Weighing

Accumulation Mode Totalizes Weights of All Axles

All Components are Watertight for Outdoor Environments

Forklift Portable Design

Heavy Duty Steel I-Beam Construction

Treaded Top Plate

On/Off Ramps Include Bolting Tabs For Fixed Installations

NEMA 4X Stainless Steel Junction Boxes

Indicator Mounting Stand Included

Factory Calibrated

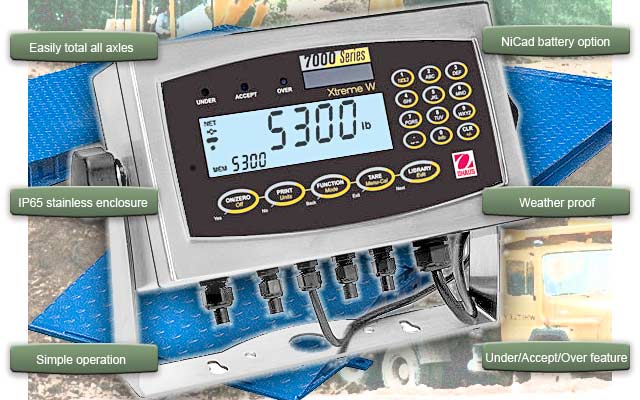

Keypad:	Full alpha-numeric keyset
	On/Zero, Print/Units, Function/Mode, TARE/Menu, Library, Edit
Annunciators:	Over, Under, OK
Dual-line Weight Readout:	Dual display shows accumulated weight and realtime weight on scale
Digital Display:	Backlit display with 6 digits live display and 6 digit accumlated display.
Output:	RS-232 output
Options:	Rechargable built in ni-cad battery
	Printer
	4-20ma output board

Platform Dimensions (2 each): 7' (L) x 30" (W) x 5.75" (H)

Ramp Dimensions (4 each): 24" (L) x 30" (W) x 5.75" (H)

Total Capacity: 60,000 lb x 20 lb (30,000 lbs Per Platform)

Four Premium Alloy Steel Nickel Plated Loadcells

Loadcells are Watertight for Wet Environments (IP67)

Loadcell Capacity is 2.6 times the Scale Capacity

Built in Overload Protection

15' Quick Connecting Cables (2) for Hostile Environments

Shipping Weight: 2,200 lbs

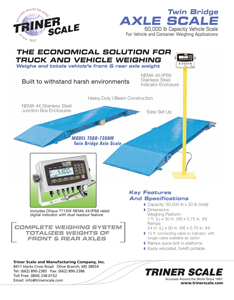

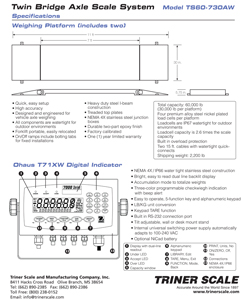

PDF:	TS60-730AW Axle Scale Brochure
