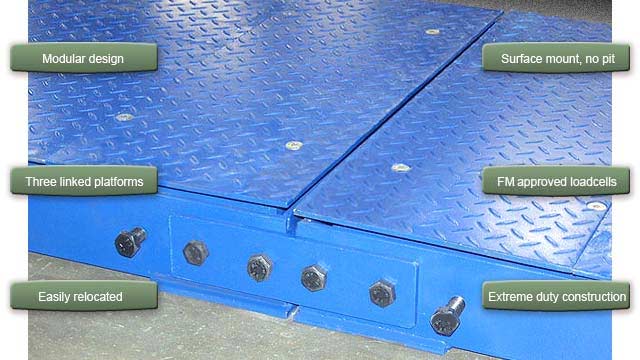

Surface-mount modules enable quick set up and easy relocation of entire truck scale system. |

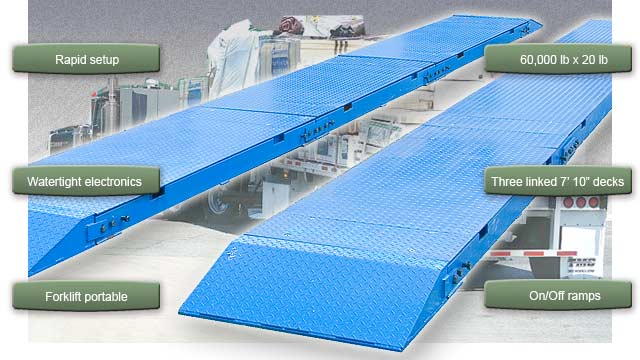

High capacity truck scale, easily installed and easily relocated.
Ships with quick-connect cables and full instructions for end-user setup. |
- Features
- Specifications
- Purchasing Info
|
| Quick, easy setup |
| Most economical 24 ft. long weighing platform available |
| Surface-mount design elimnates need for pit or bridge |
| Easily relocated |
| Forklift portable design |
| All components are watertight for outdoor environments |
| Diamond plate top surfaces |
| On/Off ramps include bolting tabs for fixed installations |
| NEMA 4X stainless steel junction boxes |
| Factory calibrated |
| |
|
|
|
|
|
|
| Capacity: |
60,000 lb x 20 lb |
| Platform Dimensions: |
(Six): 8' L x 36" W x 6.75" H |
| Ramp Dimensions: |
21" L x 36" W x 6.5" H |
| Footprint: |
27.5' L x 36" W each track |
| Loadcells: |
Four premium alloy steel nickel plated loadcells per platform
IP67 watertight for outdoor environments
Capacity is 2.6 times the scale capacity for overload protection |
| Shipping Weight: |
8,200 lb |
|
|
|
|
|
|
Please contact us for details regarding options, pricing and availability.
Call toll free within USA: (800) 238-0152
|
| |
|
|
|
